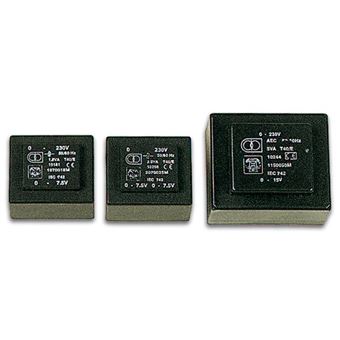

Transformador Encapsulado Velleman 12Va 1X12V / 1X1.000A

Voltage: 1 X 12V
- Current: 1 X 1.000A
- Isolation Resistance: &Gt,5Mohm / 500Vdc
- Electric Strength: &Gt,5Kv Min.
- Designed For An Ambient Temperature Of Max. 40&Deg,C
- Thermal Class E, Materials To Max. 120&Deg,
- Short-Circuit Protection Up To 3Va
- Possibility Of Thermal Fuse Protection
- Max. Temperature For Class E: 95&Deg,C
- Primary Tension: 230V &Plusmn, 10%, 50/60Hz
- Secondary Voltage Tolerance: +7% - 3% At 230V And Max. Load
- Perfect Solderability For Wave Bath
- Ce Labelled
- Creepage Distances And Clearances According To Iec742
- Picture:
-
- 1x: Bobbin With Two Chambers
-
- 2x: Input Winding
-
- 3x: Encapsulation In Epoxy Resin
-
- 4x: Output Winding
-
- 5x: Connection Pins
-
- 6x: Polyamide Cover
-
- 7x: Magnetic Core
-
- 8x: Safety Transformer
-
- 9x: Inherently Short-Circuit Proof
-
- 10x: Primary Voltage
-
- 11x: Nominal Power / Temperature
-
- 12x: Manufacturer'S Reference
-
- 13x: Ordercode
-
- 14x: Meets :
-
- 15x: Nominal Secondary Voltages
