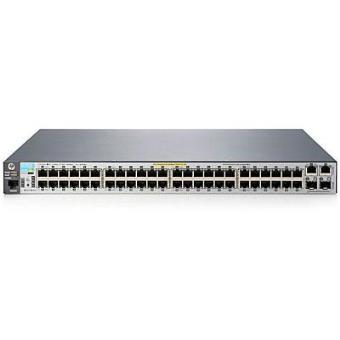

HP 2530-48-PoE+ Switch

HP 2530-48-PoE+ Switch
Overview
The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable and secure connectivity for business networks.

Features
Quality of Service (QoS)
\n• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)

\nManagement
\n• Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser.
Command-line interface (CLI): provides advanced configuration and diagnostics through a robust CLI.
Simple Network Management Protocol (SNMPv1/v2c/v3): allows a switch to be managed with a variety of third-party network management applications.

\nConnectivity
\n• IPv6: IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network.
Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6.
MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.

\nLayer 2 switching
\n• VLANs: provides support for 512 VLANs and 4,094 VLAN IDs

\nSecurity
\n• Access control lists (ACLs): accommodates IPv4/IPv6 port and VLAN-based ACLs*.
*IPv6 ACL is supported on Gigabit and 48 port models only.

\nConvergence
\n• LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP which stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones

\nResiliency and high availability
\n• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections; supports L2, L3, and L4* trunk-load-balancing algorithm.*L4 trunk-load-balancing is supported on Gigabit and 48 port models only..
IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.\n
